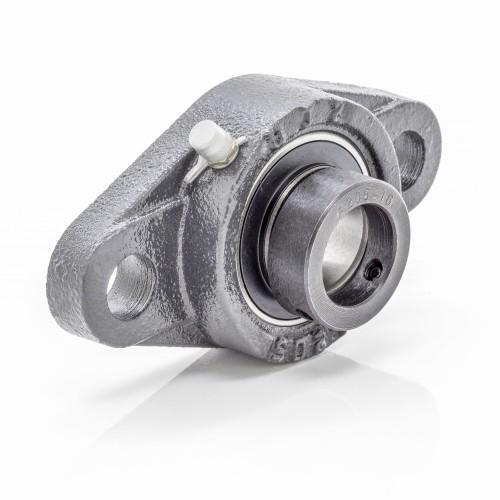

HCFL200 Flange Units
-
Sold out
$6.98HCFL203-11 - Cast Iron - 11/16 in 2-Bolts Flange HCW203-11 + FL203
Dimensions d H J L A2 A1 A E N S Bolt Size 0.6875in 99mm 76.5mm 57mm 15 11mm 24.5mm 38.4mm 11.5mm 13.9mm M10mm 0.375in
$6.98Sold out -
Sold out
$6.98HCFL201 - Cast Iron - 12 mm 2-Bolts Flange Unit HCW201 + FL203
Dimensions d H J L A2 A1 A E N S Bolt Size 12mm 99mm 76.5mm 57mm 15 11mm 24.5mm 38.4mm 11.5mm 13.9mm M10mm 0.375in
$6.98Sold out -
Sold out
$6.98HCFL202 - Cast Iron - 17 mm 2-Bolts Flange Unit HCW203 + FL203
Dimensions d H J L A2 A1 A E N S Bolt Size 17mm 99mm 76.5mm 57mm 15 11mm 24.5mm 38.4mm 11.5mm 13.9mm M10mm 0.375in
$6.98Sold out -
Sold out
$7.45HCFL204 - Cast Iron - 20 mm 2-Bolts Flange Unit HC204 + FL204
Dimensions d H J L A2 A1 A E N S Bolt Size 20mm 113mm 90mm 60mm 15 11mm 25.5mm 41.5mm 11.5mm 17mm M10mm 0.375in
$7.45Sold out -
Sold out
$9.25HCFL206 - Cast Iron - 30 mm 2-Bolts Flange Unit HC206 + FL206
Dimensions d H J L A2 A1 A E N S Bolt Size 30mm 148mm 117mm 80mm 18 13mm 31mm 48.1mm 11.5mm 18.2mm M10mm 0.375in
$9.25Sold out -
$12.42HCFL205 - Cast Iron - 25 mm 2-Bolts Flange Unit HC205 + FL205
Dimensions d H J L A2 A1 A E N S Bolt Size 25mm 130mm 99mm 68mm 16 13mm 27mm 42.9mm 11.5mm 17.4mm M10mm 0.375in
$12.42 -
Sold out
$13.50HCFL207 - Cast Iron - 35 mm 2-Bolts Flange Unit HC207 + FL207
Dimensions d H J L A2 A1 A E N S Bolt Size 35mm 161mm 130mm 90mm 19 14mm 34mm 51.3mm 14mm 18.8mm M12mm 0.5in
$13.50Sold out -
$16.93HCFL201-8 - Cast Iron - 1/2 in 2-Bolts Flange Unit HCW201-8 + FL203
Dimensions d H J L A2 A1 A E N S Bolt Size 0.5in 99mm 76.5mm 57mm 15 11mm 24.5mm 38.4mm 11.5mm 13.9mm M10mm 0.375in
$16.93 -
Sold out
$18.85HCFL208-25 - Cast Iron - 1.5625 in 2-Bolts Flange HC208-25 + FL208
Dimensions d H J L A2 A1 A E N S Bolt Size 1.5625in 175mm 144mm 100mm 21 14mm 36mm 55.9mm 14mm 21.4mm M12mm 0.5in
$18.85Sold out -
$19.38HCFL205-15 - Cast Iron - 15/16 in 2-Bolts Flange HC205-15 + FL205
Dimensions d H J L A2 A1 A E N S Bolt Size 0.9375in 130mm 99mm 68mm 16 13mm 27mm 42.9mm 11.5mm 17.4mm M10mm 0.375in
$19.38 -
$19.66HCFL205-14 - Cast Iron - 7/8 in 2-Bolts Flange Unit HC205-14 + FL205
Dimensions d H J L A2 A1 A E N S Bolt Size 0.875in 130mm 99mm 68mm 16 13mm 27mm 42.9mm 11.5mm 17.4mm M10mm 0.375in
$19.66 -
$19.74HCFL205-16 - Cast Iron - 1 in 2-Bolts Flange Unit HC205-16 + FL205
Dimensions d H J L A2 A1 A E N S Bolt Size 1in 130mm 99mm 68mm 16 13mm 27mm 42.9mm 11.5mm 17.4mm M10mm 0.375in
$19.74 -
Sold out
$22.27HCFL204-12 - Cast Iron - 3/4 in 2-Bolts Flange Unit HC204-12 + FL204
Dimensions d H J L A2 A1 A E N S Bolt Size 0.75in 113mm 90mm 60mm 15 11mm 25.5mm 41.5mm 11.5mm 17mm M10mm 0.375in
$22.27Sold out -
Sold out
$22.65HCFL209 - Cast Iron - 45 mm 2-Bolts Flange Unit HC209 + FL209
Dimensions d H J L A2 A1 A E N S Bolt Size 45mm 188mm 148mm 108mm 22 16mm 38mm 56.9mm 18mm 21.4mm M16mm 0.625in
$22.65Sold out -
Sold out
$23.00HCFL206-20 - Cast Iron - 1.25 in 2-Bolts Flange Unit HC206-20 + FL206
Dimensions d H J L A2 A1 A E N S Bolt Size 1.25in 148mm 117mm 80mm 18 13mm 31mm 48.1mm 11.5mm 18.2mm M10mm 0.375in
$23.00Sold out -
Sold out
$23.81HCFL206-19 - Cast Iron - 1.1875 in 2-Bolts Flange HC206-19 + FL206
Dimensions d H J L A2 A1 A E N S Bolt Size 1.1875in 148mm 117mm 80mm 18 13mm 31mm 48.1mm 11.5mm 18.2mm M10mm 0.375in
$23.81Sold out -
Sold out
$24.63HCFL206-18 - Cast Iron - 1.125 in 2-Bolts Flange HC206-18 + FL206
Dimensions d H J L A2 A1 A E N S Bolt Size 1.125in 148mm 117mm 80mm 18 13mm 31mm 48.1mm 11.5mm 18.2mm M10mm 0.375in
$24.63Sold out -
Sold out
$27.50HCFL210 - Cast Iron - 50 mm 2-Bolts Flange Unit HC210 + FL210
Dimensions d H J L A2 A1 A E N S Bolt Size 50mm 197mm 157mm 115mm 22 16mm 40mm 60.1mm 18mm 24.6mm M16mm 0.625in
$27.50Sold out -
$28.03HCFL207-20 - Cast Iron - 1.25 in 2-Bolts Flange Unit HC207-20 + FL207
Dimensions d H J L A2 A1 A E N S Bolt Size 1.25in 161mm 130mm 90mm 19 14mm 34mm 51.3mm 14mm 18.8mm M12mm 0.5in
$28.03 -
$28.03HCFL207-22 - Cast Iron - 1.375 in 2-Bolts Flange HC207-22 + FL207
Dimensions d H J L A2 A1 A E N S Bolt Size 1.375in 161mm 130mm 90mm 19 14mm 34mm 51.3mm 14mm 18.8mm M12mm 0.5in
$28.03 -
$28.26HCFL207-23 - Cast Iron - 1.4375 in 2-Bolts Flange HC207-23 + FL207
Dimensions d H J L A2 A1 A E N S Bolt Size 1.4375in 161mm 130mm 90mm 19 14mm 34mm 51.3mm 14mm 18.8mm M12mm 0.5in
$28.26 -
$31.68HCFL207-21 - Cast Iron - 1.3125 in 2-Bolts Flange HC207-21 + FL207
Dimensions d H J L A2 A1 A E N S Bolt Size 1.3125in 161mm 130mm 90mm 19 14mm 34mm 51.3mm 14mm 18.8mm M12mm 0.5in
$31.68 -
$32.02HCFL208-24 - Cast Iron - 1.5 in 2-Bolts Flange Unit HC208-24 + FL208
Dimensions d H J L A2 A1 A E N S Bolt Size 1.5in 175mm 144mm 100mm 21 14mm 36mm 55.9mm 14mm 21.4mm M12mm 0.5in
$32.02 -
Sold out
$35.50HCFL211 - Cast Iron - 2.125 in 2-Bolts Flange Unit HC211 + FL211
Dimensions d H J L A2 A1 A E N S Bolt Size 55mm 224mm 184mm 130mm 25 18mm 43mm 68.6mm 18mm 27.7mm M16mm 0.625in
$35.50Sold out
