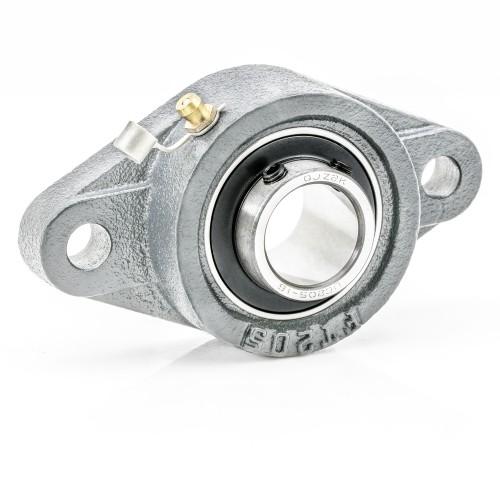

UCFT200 Flange Units
-
Sold out
$6.50UCFT203-11 - Cast Iron - 11/16 in 2-Bolts Flange UCW203-11 + FT203
Dimensions d A E I G L S B Z N Bolt Size 0.6875in 100mm 76.2mm 17.1mm 11mm 25mm 10.5mm 57mm 33.1mm 10 M8mm 0.3125in
$6.50Sold out -
Sold out
$6.50UCFT201 - Cast Iron - 12 mm 2-Bolts Flange Unit UCW201 + FT203
Dimensions d A E I G L S B Z N Bolt Size 12mm 100mm 76.2mm 17.1mm 11mm 25mm 10.5mm 57mm 33.1mm 10 M8mm 0.3125in
$6.50Sold out -
Sold out
$6.50UCFT202 - Cast Iron - 15 mm 2-Bolts Flange Unit UCW202 + FT203
Dimensions d A E I G L S B Z N Bolt Size 15mm 100mm 76.2mm 17.1mm 11mm 25mm 10.5mm 57mm 33.1mm 10 M8mm 0.3125in
$6.50Sold out -
Sold out
$6.50UCFT203 - Cast Iron - 17 mm 2-Bolts Flange Unit UCW203 + FT203
Dimensions d A E I G L S B Z N Bolt Size 17mm 100mm 76.2mm 17.1mm 11mm 25mm 10.5mm 57mm 33.1mm 10 M8mm 0.3125in
$6.50Sold out -
Sold out
$6.50UCFT202-9 - Cast Iron - 9/16 in 2-Bolts Flange Unit UCW202-9 + FT203
Dimensions d A E I G L S B Z N Bolt Size 0.5625in 100mm 76.2mm 17.1mm 11mm 25mm 10.5mm 57mm 33.1mm 10 M8mm 0.3125in
$6.50Sold out -
Sold out
$7.15UCFT205-13 - Cast Iron - 13/16 in 2-Bolts Flange UC205-13 + FT205
Dimensions d A E I G L S B Z N Bolt Size 0.8125in 124mm 98.8mm 15.9mm 13mm 27mm 12.5mm 70mm 35.6mm 14.3 M10mm 0.375in
$7.15Sold out -
Sold out
$8.50UCFT206 - Cast Iron - 30 mm 2-Bolts Flange Unit UC206 + FT206
Dimensions d A E I G L S B Z N Bolt Size 30mm 141mm 116.7mm 17.9mm 13mm 30mm 12.5mm 83mm 40.1mm 15.9 M10mm 0.375in
$8.50Sold out -
Sold out
$11.75UCFT202-10 - Cast Iron - 5/8 in 2-Bolts Flange UCW202-10 + FT203
Dimensions d A E I G L S B Z N Bolt Size 0.625in 100mm 76.2mm 17.1mm 11mm 25mm 10.5mm 57mm 33.1mm 10 M8mm 0.3125in
$11.75Sold out -
Sold out
$12.40UCFT201-8 - Cast Iron - 1/2 in 2-Bolts Flange Unit UCW201-8 + FT203
Dimensions d A E I G L S B Z N Bolt Size 0.5in 100mm 76.2mm 17.1mm 11mm 25mm 10.5mm 57mm 33.1mm 10 M8mm 0.3125in
$12.40Sold out -
Sold out
$12.50UCFT208-25 - Cast Iron - 1.5625 in 2-Bolts Flange UC208-25 + FT208
Dimensions d A E I G L S B Z N Bolt Size 1.5625in 171mm 143.7mm 21mm 14mm 38mm 14mm 105mm 51.2mm 19 M12mm 0.5in
$12.50Sold out -
Sold out
$14.80UCFT209 - Cast Iron - 45 mm 2-Bolts Flange Unit UC209 + FT209
Dimensions d A E I G L S B Z N Bolt Size 45mm 179mm 148.4mm 21.8mm 14mm 40mm 16mm 111mm 52mm 19 M14mm 0.5625in
$14.80Sold out -
Sold out
$17.85UCFT210-29 - Cast Iron - 1.8125 in 2-Bolts Flange UC210-29 + FT210
Dimensions d A E I G L S B Z N Bolt Size 1.8125in 189mm 157.2mm 22.2mm 14mm 40mm 16mm 116mm 54.8mm 19 M14mm 0.5625in
$17.85Sold out -
Sold out
$17.85UCFT210 - Cast Iron - 50 mm 2-Bolts Flange Unit UC210 + FT210
Dimensions d A E I G L S B Z N Bolt Size 50mm 189mm 157.2mm 22.2mm 14mm 40mm 16mm 116mm 54.8mm 19 M14mm 0.5625in
$17.85Sold out -
$19.04UCFT204 - Cast Iron - 20 mm 2-Bolts Flange Unit UC204 + FT204
Dimensions d A E I G L S B Z N Bolt Size 20mm 112mm 89.7mm 14.3mm 11mm 25mm 10.5mm 60mm 32.6mm 12.7 M8mm 0.3125in
$19.04 -
$21.43UCFT205-15 - Cast Iron - 15/16 in 2-Bolts Flange UC205-15 + FT205
Dimensions d A E I G L S B Z N Bolt Size 0.9375in 124mm 98.8mm 15.9mm 13mm 27mm 12.5mm 70mm 35.6mm 14.3 M10mm 0.375in
$21.43 -
$21.43UCFT205-14 - Cast Iron - 7/8 in 2-Bolts Flange Unit UC205-14 + FT205
Dimensions d A E I G L S B Z N Bolt Size 0.875in 124mm 98.8mm 15.9mm 13mm 27mm 12.5mm 70mm 35.6mm 14.3 M10mm 0.375in
$21.43 -
Sold out
$21.50UCFT211-33 - Cast Iron - 2.0625 in 2-Bolts Flange UC211-33 + FT211
Dimensions d A E I G L S B Z N Bolt Size 2in 216mm 184.2mm 25.4mm 21mm 44mm 18mm 133mm 58.8mm 22.2 M16mm 0.625in
$21.50Sold out -
Sold out
$21.50UCFT211 - Cast Iron - 55 mm 2-Bolts Flange Unit UC211 + FT211
Dimensions d A E I G L S B Z N Bolt Size 55mm 216mm 184.2mm 25.4mm 21mm 44mm 18mm 133mm 58.8mm 22.2 M16mm 0.625in
$21.50Sold out -
$21.96UCFT205 - Cast Iron - 25 mm 2-Bolts Flange Unit UC205 + FT205
Dimensions d A E I G L S B Z N Bolt Size 25mm 124mm 98.8mm 15.9mm 13mm 27mm 12.5mm 70mm 35.6mm 14.3 M10mm 0.375in
$21.96 -
$23.81UCFT206-17 - Cast Iron - 1.0625 in 2-Bolts Flange UC206-17 + FT206
Dimensions d A E I G L S B Z N Bolt Size 1.0625in 141mm 116.7mm 17.9mm 13mm 30mm 12.5mm 83mm 40.1mm 15.9 M10mm 0.375in
$23.81 -
$23.81UCFT206-19 - Cast Iron - 1.1875 in 2-Bolts Flange UC206-19 + FT206
Dimensions d A E I G L S B Z N Bolt Size 1.1875in 141mm 116.7mm 17.9mm 13mm 30mm 12.5mm 83mm 40.1mm 15.9 M10mm 0.375in
$23.81 -
$23.83UCFT205-16 - Cast Iron - 1 in 2-Bolts Flange Unit UC205-16 + FT205
Dimensions d A E I G L S B Z N Bolt Size 1in 124mm 98.8mm 15.9mm 13mm 27mm 12.5mm 70mm 35.6mm 14.3 M10mm 0.375in
$23.83 -
$24.62UCFT206-18 - Cast Iron - 1.125 in 2-Bolts Flange UC206-18 + FT206
Dimensions d A E I G L S B Z N Bolt Size 1.125in 141mm 116.7mm 17.9mm 13mm 30mm 12.5mm 83mm 40.1mm 15.9 M10mm 0.375in
$24.62 -
$24.89UCFT207-21 - Cast Iron - 1.3125 in 2-Bolts Flange UC207-21 + FT207
Dimensions d A E I G L S B Z N Bolt Size 1.3125in 156mm 130.2mm 19.1mm 14mm 34mm 14mm 95mm 44.5mm 17.5 M12mm 0.5in
$24.89
