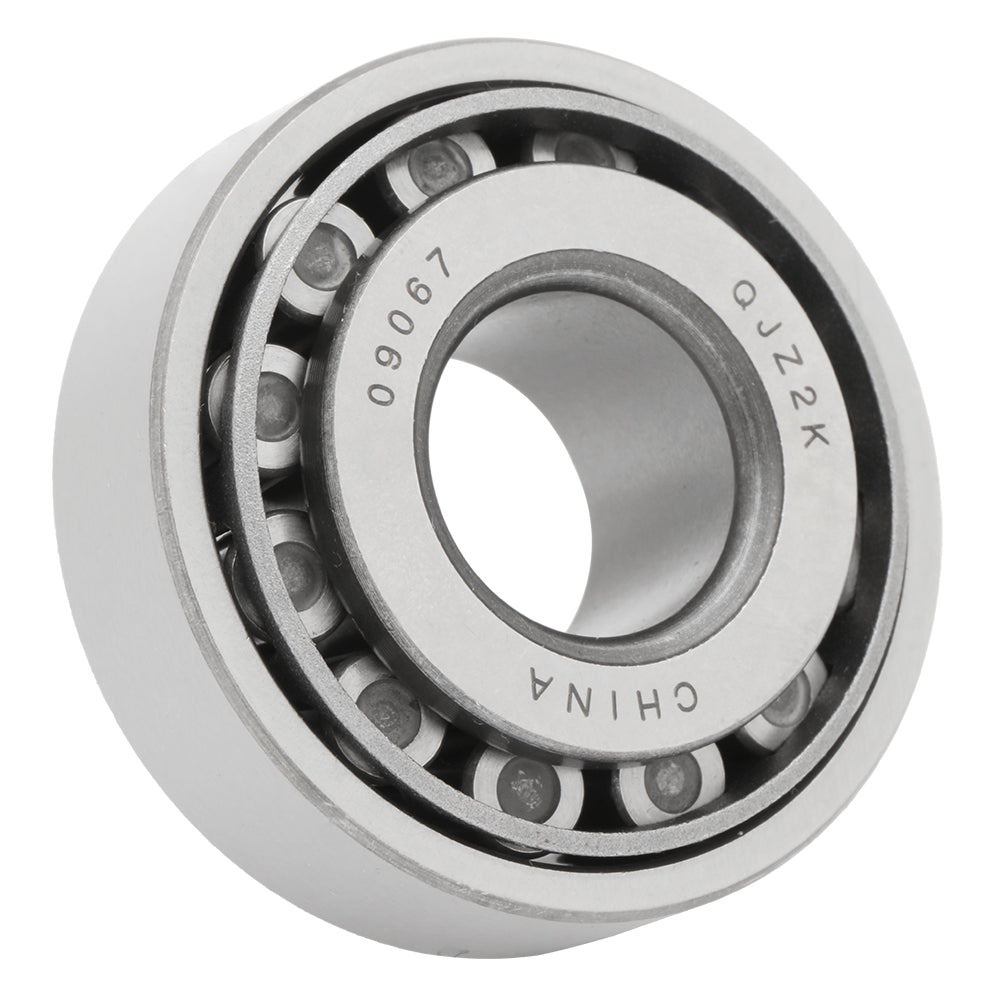

Cone: 09067, Race: 09195 - Tapered Roller Bearing 0.75" x 1.938" x 0.71" (ID x OD x W) | 19.05 mm x 49.225 mm x 18.034 mm (ID x OD x W)
Cone: 09067, Race: 09195 - Tapered Roller Bearing 0.75" x 1.938" x 0.71" (ID x OD x W) | 19.05 mm x 49.225 mm x 18.034 mm (ID x OD x W)

Cone: 09067, Race: 09195 - Tapered Roller Bearing 0.75" x 1.938" x 0.71" (ID x OD x W) | 19.05 mm x 49.225 mm x 18.034 mm (ID x OD x W)

$9.99



✔️ [Bearing Type] - Tapered Roller Bearing: Cone 09067, Cup 09195
✔️ [Dimensions in Inches] - 3/4 in (Inner Diameter) x 1.9380 in (Outer Diameter) x 0.71 in (Total Bearing Width)
✔️ [Dimensions in Millimeter] - 19.050 mm (Inner Diameter) x 49.225 mm (Outer Diameter) x 18.034 mm (Total Bearing Width)
✔️ [Width] - Cone Width: 19.050 mm / 0.75" | Cup Width: 14.288 mm / 0.5625"
Dimensions (mm)
d D T B C Rmin rmin Cr Cor
19.05 49.2252 18.034 19.05 14.2875 1.27 1.27 39.7 40.5
Dimensions (in)
d D T B C Rmin rmin Cr Cor
0.75 1.938 0.71 0.75 0.5625 0.05 0.05 39.7 40.5
