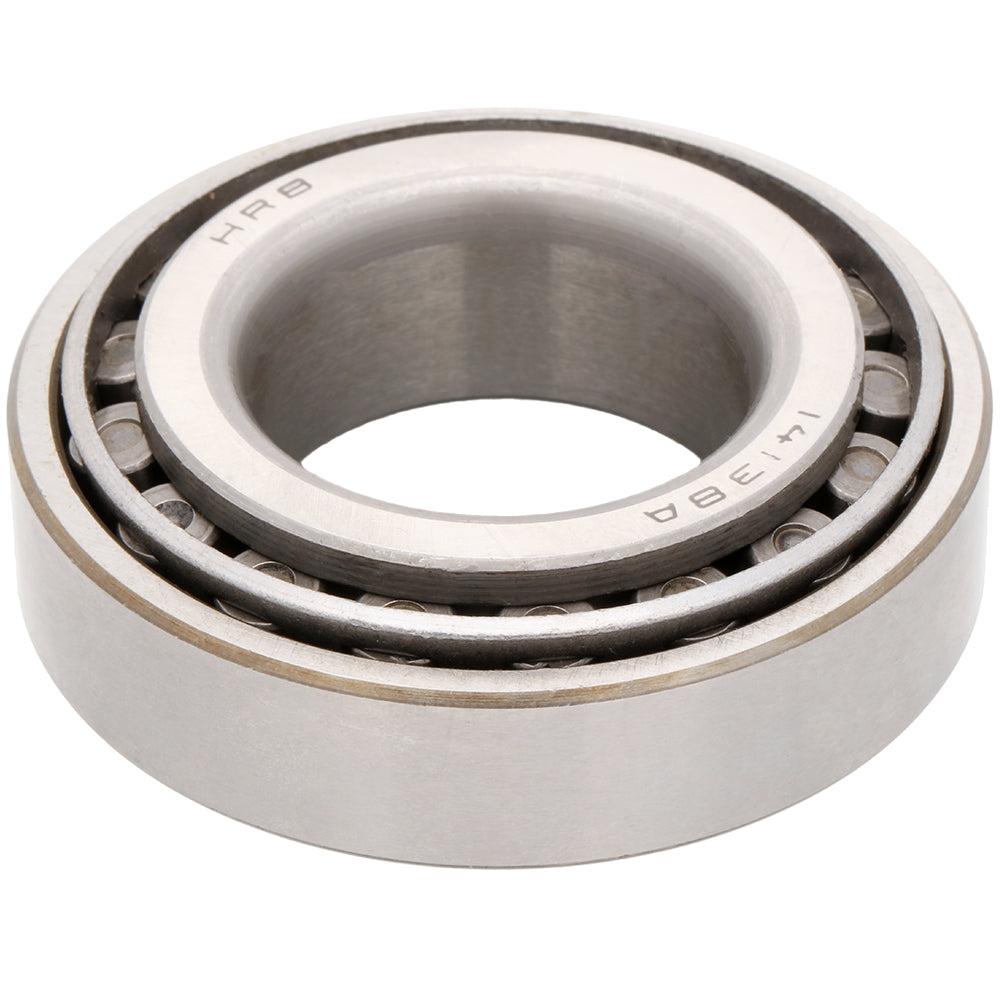

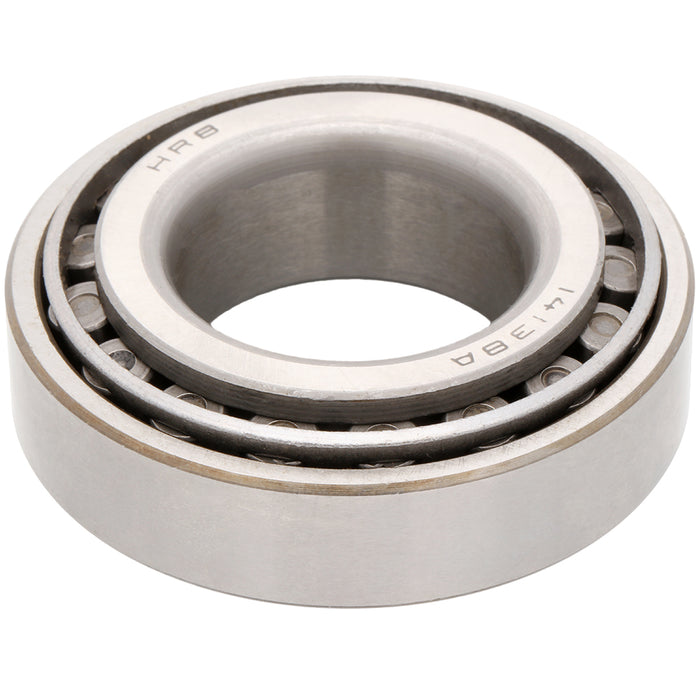

Cone: 14138A, Race: 14276 - Tapered Roller Bearing - 1-3/8" x 2.717" x 0.781" (ID x OD x W) | 34.93 mm x 69.012 mm x 19.85 mm (ID x OD x W)
Cone: 14138A, Race: 14276 - Tapered Roller Bearing - 1-3/8" x 2.717" x 0.781" (ID x OD x W) | 34.93 mm x 69.012 mm x 19.85 mm (ID x OD x W)

Cone: 14138A, Race: 14276 - Tapered Roller Bearing - 1-3/8" x 2.717" x 0.781" (ID x OD x W) | 34.93 mm x 69.012 mm x 19.85 mm (ID x OD x W)

$9.99

✔️ [Bearing Type] - Tapered Roller Bearing: Cone 14138A, Race 14276

✔️ [Dimensions in Inches] - 1.375 in (Inner Diameter) x 2.717 in (Outer Diameter) x 0.781 in (Total Bearing Width)

✔️ [Dimensions in Millimeter] - 34.925 mm (Inner Diameter) x 69.012 mm (Outer Diameter) x 19.845 mm (Total Bearing Width)

✔️ [Cone & Cup Width] - Cone: 19.583 mm / 0.7710" | Cup: 15.875 mm / 0.6250"


Dimensions (mm)
d D T B C Rmin rmin Cr Cor
34.925 69.012 19.845 19.583 15.875 3.5 1.3 50.6 61.7
Dimensions (in)
d D T B C Rmin rmin Cr Cor
1.3750007425 69.012 19.845 19.583 15.875 3.5 1.3 50.6 61.7
