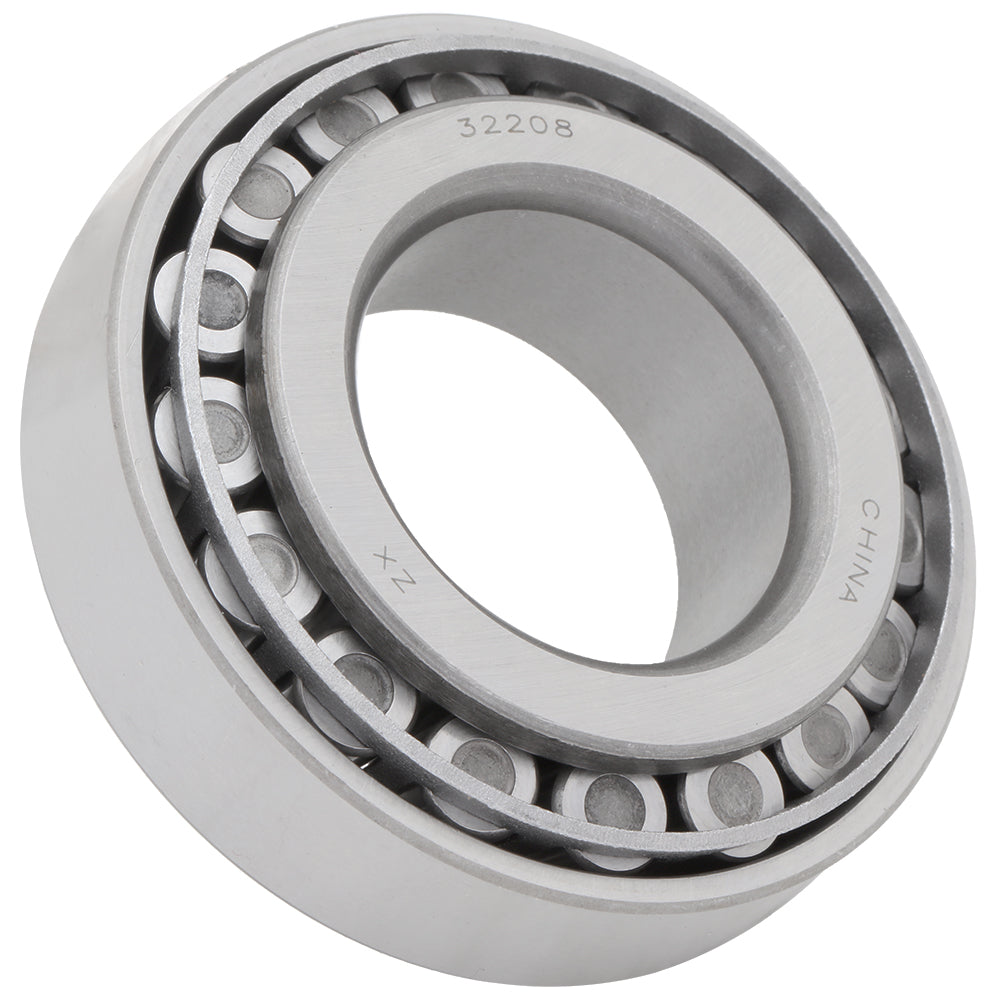

Cone & Race: 32208 - Tapered Roller Bearing - 1.5748 in x 3.1496 in x 0.9744 in (ID x OD x W) |40 mm x 80 mm x 24.75 mm (ID x OD x W) Premium Wheel, Axle, Transfer Case Output Shaft Bearings
Cone & Race: 32208 - Tapered Roller Bearing - 1.5748 in x 3.1496 in x 0.9744 in (ID x OD x W) |40 mm x 80 mm x 24.75 mm (ID x OD x W) Premium Wheel, Axle, Transfer Case Output Shaft Bearings

Cone & Race: 32208 - Tapered Roller Bearing - 1.5748 in x 3.1496 in x 0.9744 in (ID x OD x W) |40 mm x 80 mm x 24.75 mm (ID x OD x W) Premium Wheel, Axle, Transfer Case Output Shaft Bearings

$9.99



✔️ [Bearing Type] - Tapered Roller Bearing Cone & Race: 32208
✔️ [Dimensions in Inches] - 1.5748 in (Inner Diameter) x 3.1496 in (Outer Diameter) x 0.9744 in (Total Bearing Width)
✔️ [Dimensions in Millimeter] - 40 mm (Inner Diameter) x 80 mm (Outer Diameter) x 24.75 mm (Total Bearing Width)
✔️ [Width] - Cone Width: 23 mm | 0.9055 in / Cup Width: 19 mm | 0.748 in
✔️ [Cross Reference] - 32208A,32208J2, 01/02/7408, 40KB22, 4T-32208, E32208J, T3DC040, 32208J2/Q, 32208JR, 32208V, 32208VC12, HR32208J





Dimensions (mm)
d D T B C Rmin rmin Cr Cor
40 80 32 32 25 1.5 1.5 112 144
Dimensions (in)
d D T B C Rmin rmin Cr Cor
1.5748031496 3.1496062992 1.25984251968 1.25984251968 0.9842519685 0.05905511811 0.05905511811 112 144
