Cone: LM501349, Race: LM501311 - Tapered Roller Bearing - 1-5/8" x 2.891" x 0.906" (ID x OD x W) |41.275 mm x 73.431 mm x 23.012 mm (ID x OD x W) Wheel, Axle, Transfer Case Output Shaft Bearings

Cone: LM501349, Race: LM501311 - Tapered Roller Bearing - 1-5/8" x 2.891" x 0.906" (ID x OD x W) |41.275 mm x 73.431 mm x 23.012 mm (ID x OD x W) Wheel, Axle, Transfer Case Output Shaft Bearings

$12.25 USD
$12.25 USD
Sale Sold out
Shipping calculated at checkout.

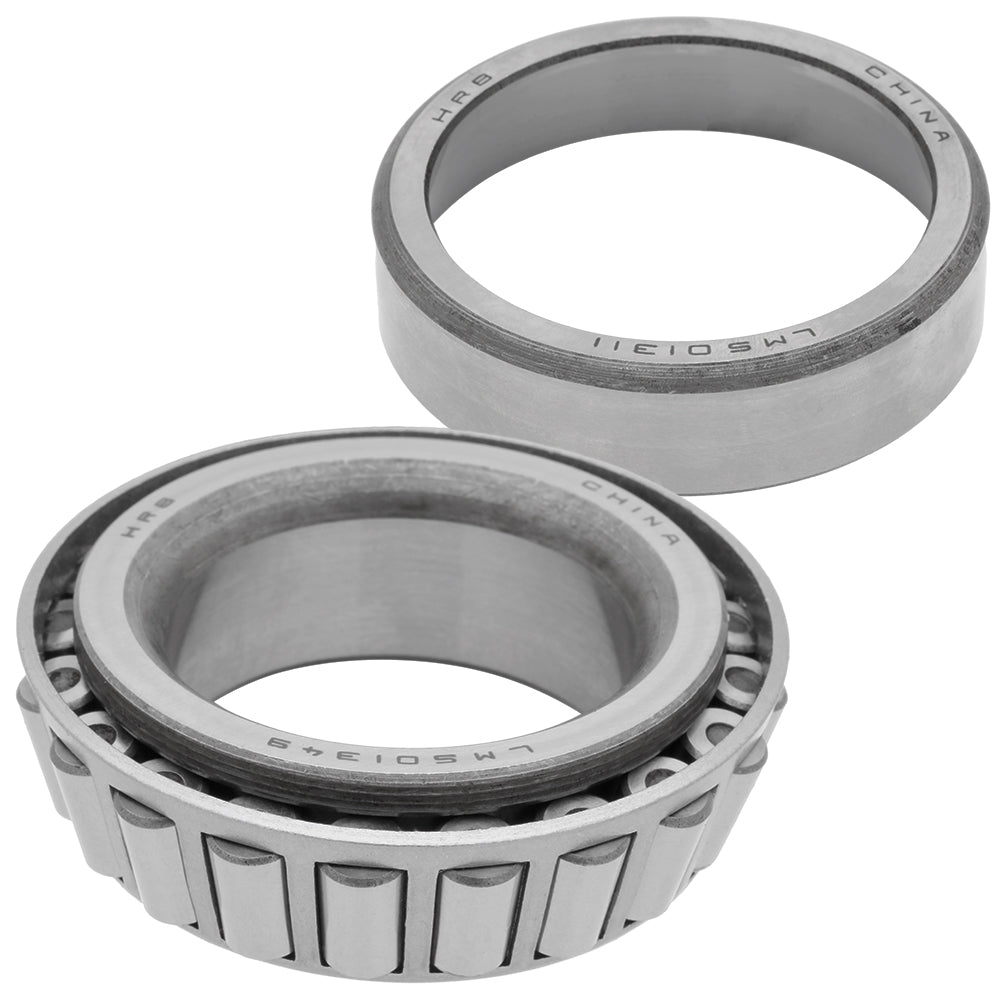

✔️ [Bearing Type] - Tapered Roller Bearing: Cone: LM501349, Race (Cup): LM501311
✔️ [Dimensions in Inches] - 1.625 in (Inner Diameter) x 2.891 in (Outer Diameter) x 0.906 in (Total Bearing Width)
✔️ [Dimensions in Millimeter] - 41.275 mm (Inner Diameter) x 73.431 mm (Outer Diameter) x 23.012 mm (Total Bearing Width)
✔️ [Width] - Cone Width: 19.812 mm | 0.78 in / Cup Width: 18.186 mm | 0.716 in
Dimensions (mm)
d D T B C Rmin rmin Cr Cor
41.275 73.431 23.012 19.812 18.186 3.5 2.3 58.4 74.2
Dimensions (in)
d D T B C Rmin rmin Cr Cor
1.6250008775 73.431 23.012 19.812 18.186 3.5 2.3 58.4 74.2
